DVB Remultiplexer 1-to-1

DVB Remultiplexer 1-to-1
IP Vendor:
MVD Cores
IP Target Vendor:
Xilinx
IP Code Language:
VHDL
IP Type:
Design
IP Category:
Audio, Video and Image Processing
IP Supported FPGA Device:
Spartan-3A DSP
Virtex-4 FX
Virtex-4 LX
Virtex-4 SX
Virtex-5 FXT
Virtex-5 LX
Virtex-5 LXT
Virtex-5 SXT
IP Description:

Description

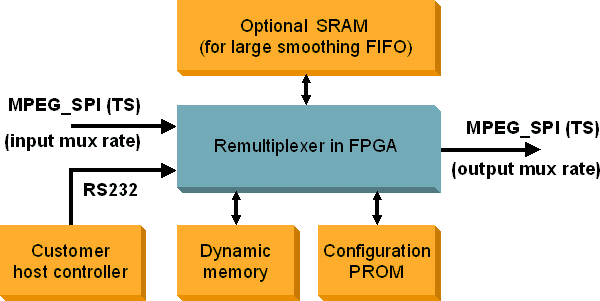

The MVD DVB remultiplexer 1-to-1 core is a drop-in module for reducing the MPEG TS rate by filtering services selected by an external host controller.

  • The remultiplexer is managed by an external host via the RS232 link. The host is in charge to read the statistical data and to select the services to filter.
  • Generation of a new NIT or pass through of the current NIT.
  • Regeneration of PSI/SI tables PAT and SDT.
  • Large smoothing FIFO to optimize the bandwidth of the output rate.

Features


  • Drop-in module for Virtex-5™, Virtex-4™ and Spartan™-3A_DSP FPGAs
  • 1 SPI input / 1 SPI output
  • Adapt an MPEG TS mux rate into another by filtering complete services
  • Management of PSI/SI tables (automatic tables generator) according to ETS300468 and ISO 13818-1
  • Configurable via a RS232 link
  • Service filtering and insertion of custom NIT
  • Full PCR re-stamping
  • Master/Slave control of output mux flow
  • Statistical service bandwidth estimation
  • Maximize output payload bandwidth thanks to smoothing FIFO
  • Smoothing FIFO can be implemented as block RAM or external Synchronous SRAM memory
  • Configurable size of the smoothing FIFO
  • Full synthesizable RTL design (not delivered) for easy customization
  • Netlist version available for ISE 10 and later versions

MPEG TS rate decrease by filtering services. 1 input / 1 output.
