Creating a simple FPGA project

FPGA design process involves the same sequence of actions for every FPGA design software suite:

  • Create a project (choose a name, an FPGA device, a default language etc.)
  • Add files to project (both HDL descriptions of the target device and testbenches for behavioral simulation).
  • Behavoiral simulation.
  • Synthesis (an automatic process to translate HDL description to a netlist).
  • Implementation and bitstream generation.

Now we will proceed with the specific example of a simple FPGA project directed to Xilinx Spartan-3A FPGA using the Spartan-3A Starter Kit (a starter kit isn't needed to create a project and to produce a bitstream, but it is needed to ensure that the design works in hardware). The steps for other vendors' FPGAs are basically the same.

We will use a free downloadable Xilinx ISE WebPack both as simulation and implementation tool.

Creating a project

At first, we must to create a project. It is done by using File->New Project menu item. A dialog will appear asking to select project name and folder. Choose Next to setup basic project parameters.

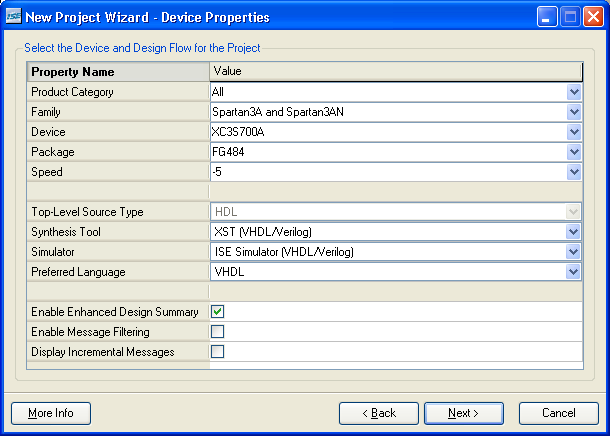

To create a design for Spartan-3A Starter Kit we must choose xc3s700a in FG484 package as out target device. We will also use VHDL as our preferred language.

The next dialogs offer us to create and/or add files to the project. We'll skip them at this time.

Now, the project is created. The ISE main window includes a sidebar, which is placed on the left side by default. The upper part of the sidebar displays a tree listing all project files, and the lower part lists tasks that are applicable for the file that is selected in the upper part.
